RM5 HD
High-Discrimination Electronic Coin Validator

RM5 HD will surprise you with its features and functions. Its high discrimination capability and the remarkable acceptance speed represent the state of the art in SUZOHAPP research in the creation of electronic coin validators increasingly reliable and fast, ideal partners for every entertainment or automatic distribution machine.

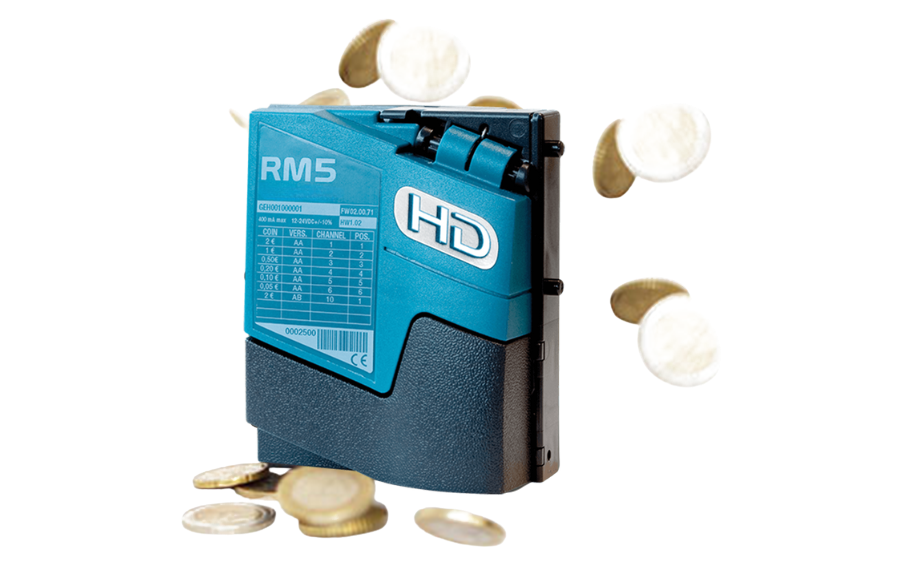

A versatile coin mechanism, which perfectly integrates with the machine onto which it is installed. Creating the ideal coin mechanism with an unlimited budget is rather simple; the real challenge is obtaining the highest performance keeping costs as low as possible. RM5 HD is a winner under all points of view, combining considerable performance and a really competitive price.

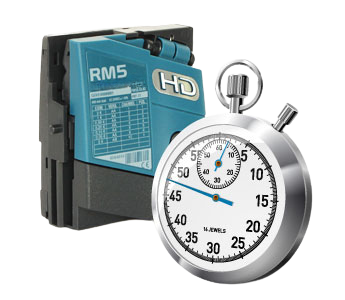

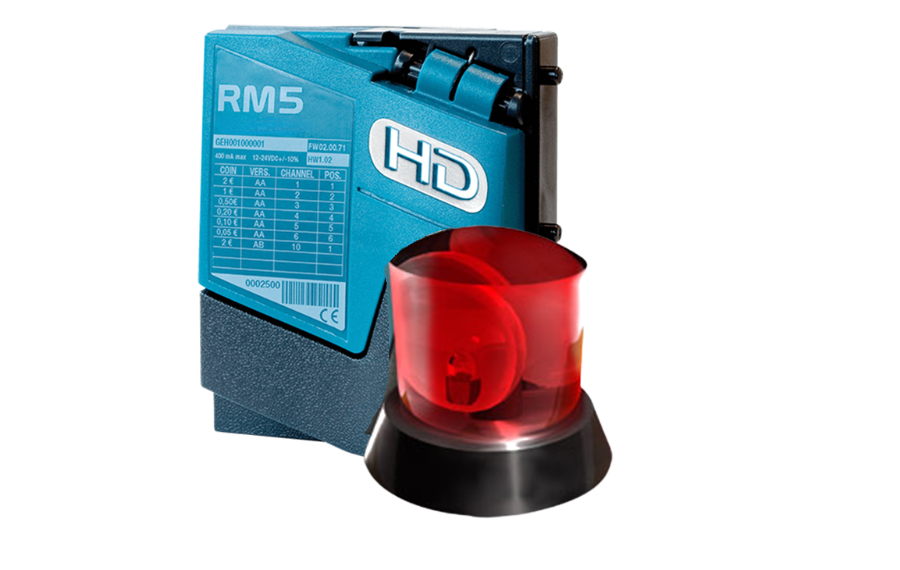

The RM5 HD coin validator has set new standards in coin validation. Through 5 different sensors and 10 recognition parameters, the RM5 HD ensures a high level of recognition and discrimination of valid and counterfeit coins with an unprecedented speed of 6 coins per second of mixed denomination. The RM5 HD's innovative construction ensures strength and durability, while advanced electronic and mechanical anti-fraud systems guarantee excellent security in all its various installation modes.

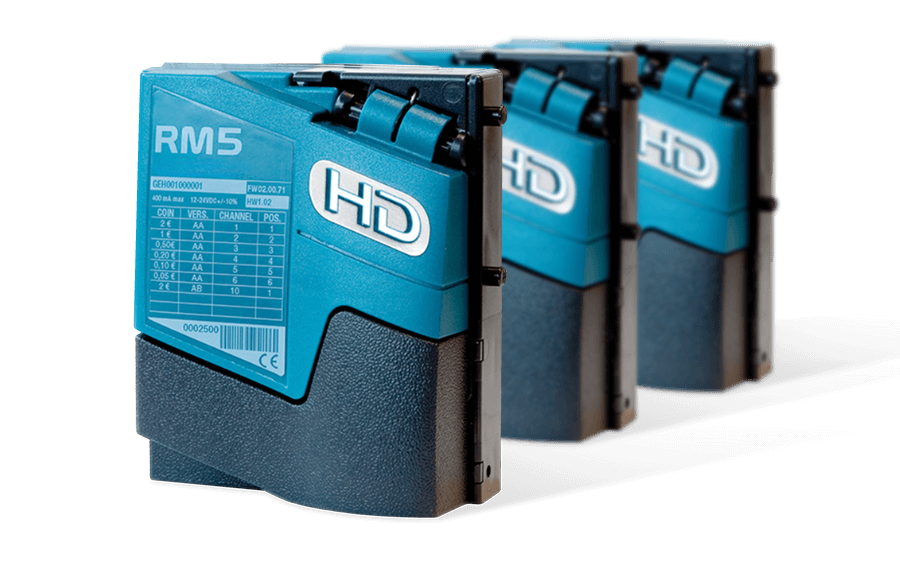

Technology

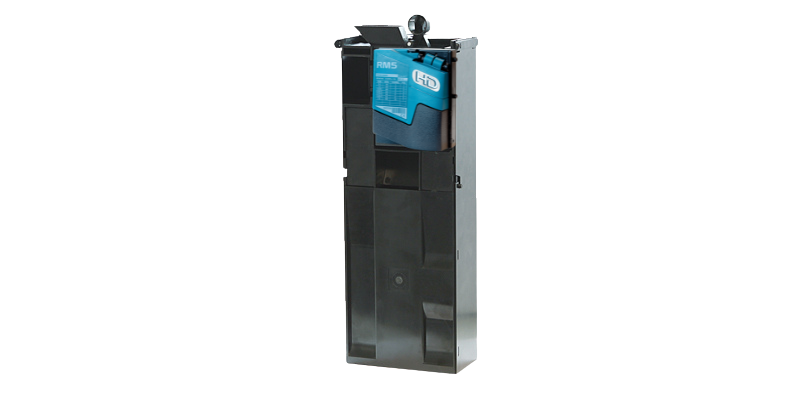

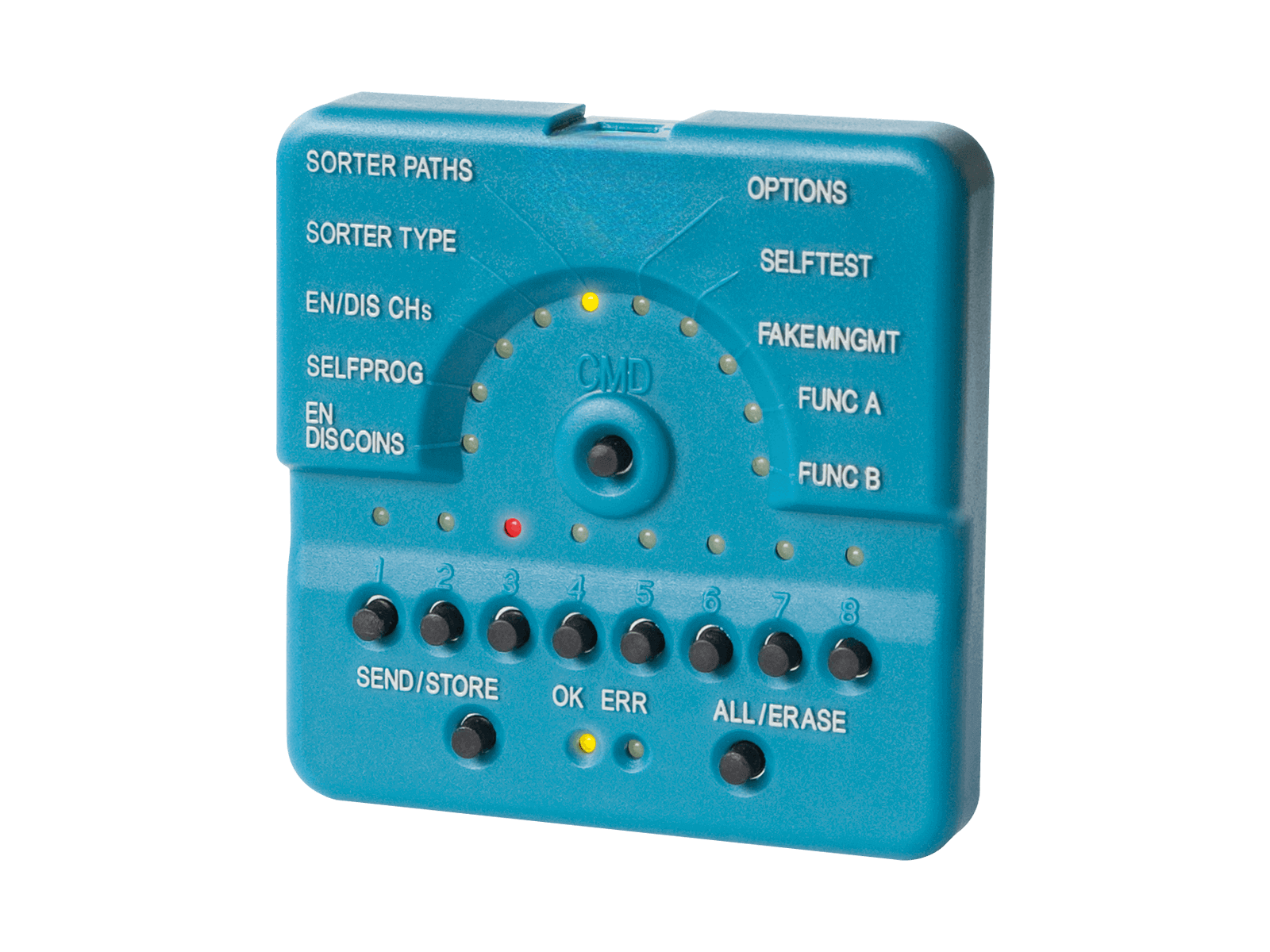

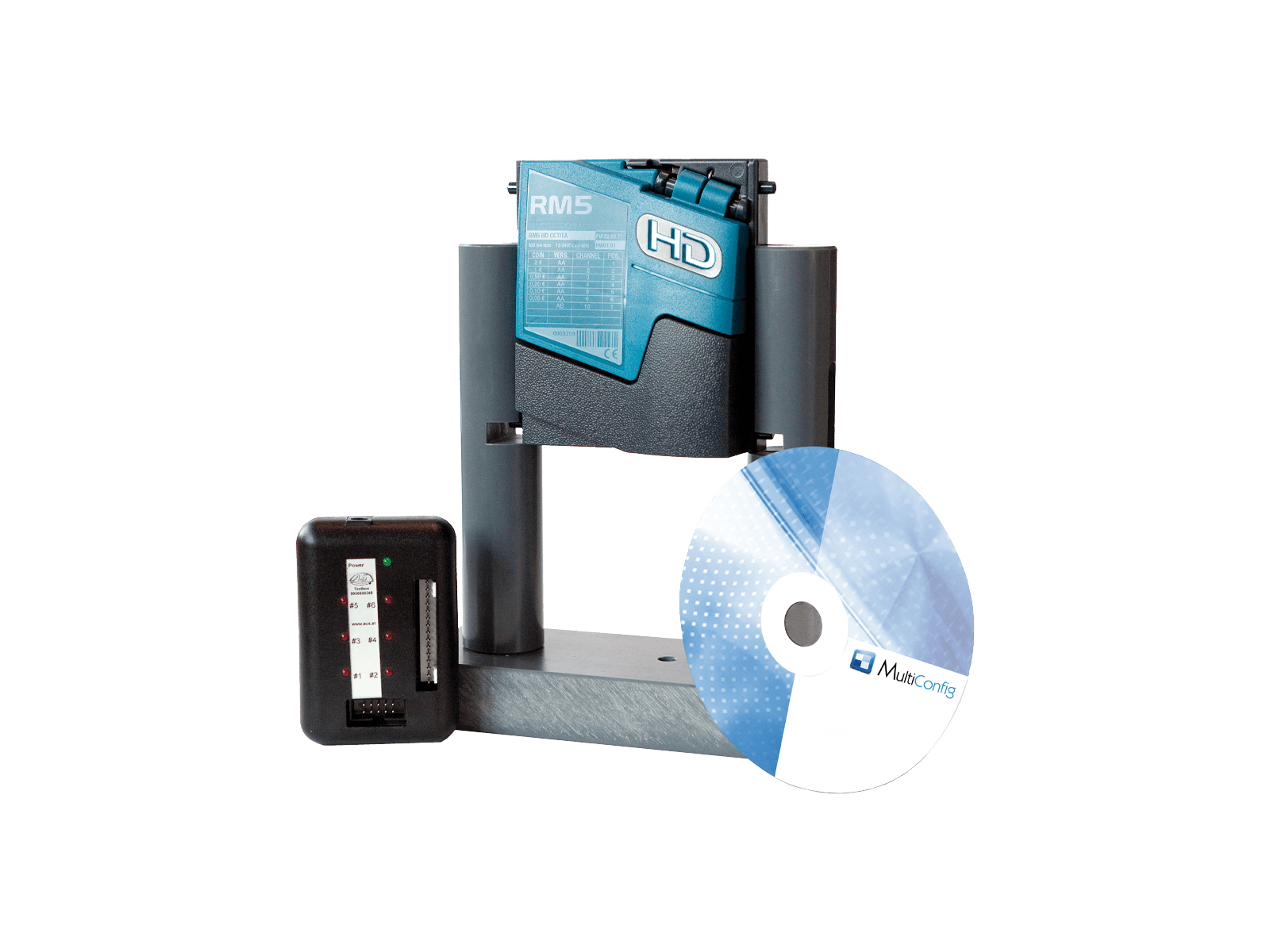

Accessories

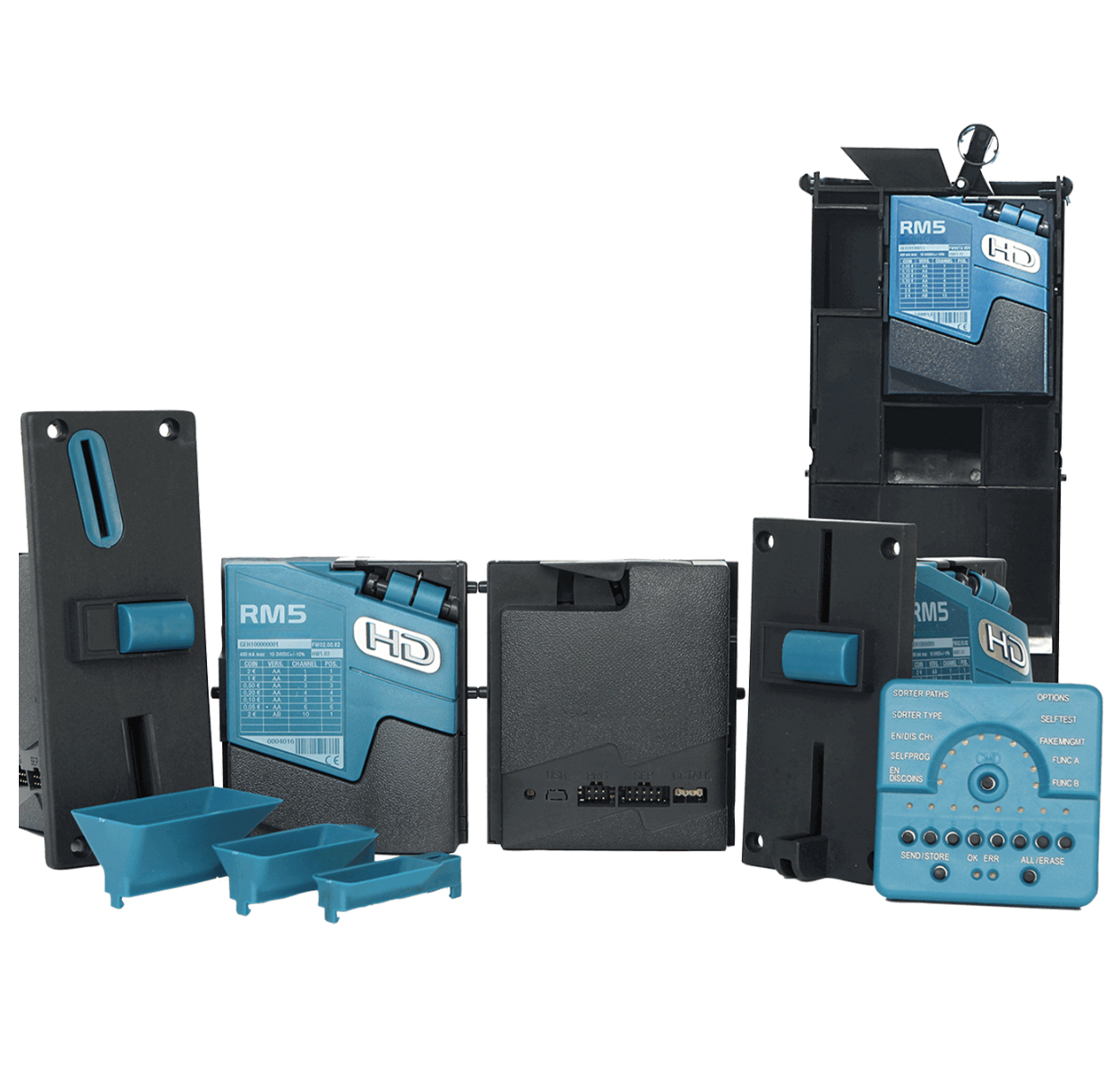

Versions



  • Parallel Validator

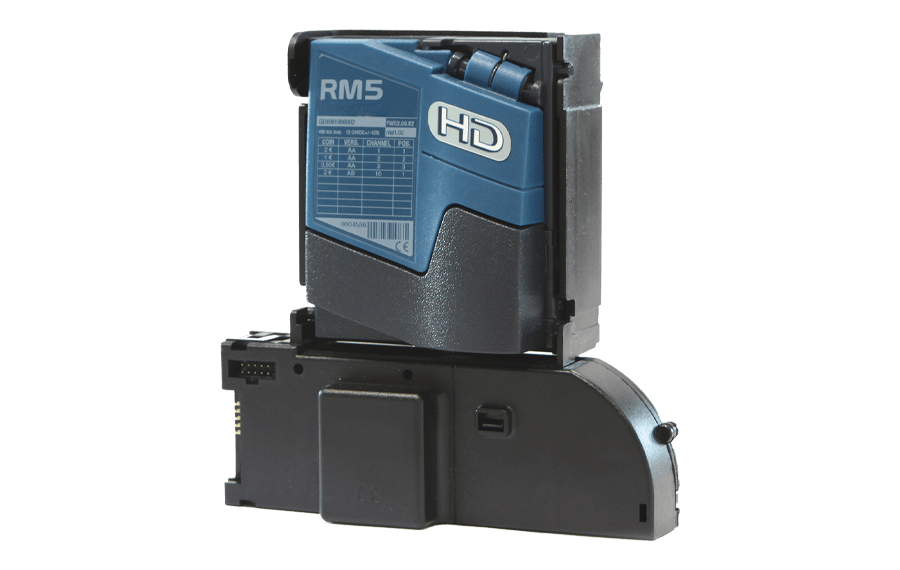

  • Parallel Validator with sorter
  • Spain mode validator
  • Binary Validator
  • Confida Binary Validator
  • Credit pulse emission totaliser
  • Credit pulse emission totaliser with sorter control
  • ccTalk Giochi Italia
  • ccTalk Full

Configurations



RM5 HD is available in two versions, with a different acceptance channel.

  • Version A, optimised for the euro, which accepts coins with a maximum diameter of 27 mm and maximum thickness of 2.4 mm.
  • Version B, which accepts coins with a maximum diameter of 31.5 mm and maximum thickness of 3.2 mm.

Each of the two versions is available in four models, in order to meet different installation requirements.


Mechanical Configurations


Model Coin Reject
G Top Bottom
F Top or Front Front
B Top or Front Bottom
V Top Front
M Top or Front Bottom
S Top Bottom

Downloads



RM5 HD Software + Operating Manuals


Description Release Language
MultiConfig Software 2.1.7 EN Download
Operating Manuals 1.3.3 EN Download
Datasheet DE Download
Datasheet EN Download
Datasheet FR Download
Datasheet IT Download
Datasheet PL Download


RM5 HD DATASETS


Currency coins Channel
AED | Dirham Emirati Arabi 0.25 ÷ 1 4,5 mm - Blue Deck Download
BAM | Bosnia and Herzegovina 0,10 ÷ 5,00 4,5 mm - Blue Deck Download
BYN | Belarus 0,05 ÷ 2,00 3,5 mm - Black Deck Download
CAD | Canadian Dollar 0,05 ÷ 2,00 4,5 mm - Blue Deck Download
CHF | Swiss Franc 0,10 ÷ 5,00 4,5 mm - Blue Deck Download
CLP | Chilean Peso 10 ÷ 500 4,5 mm - Blue Deck Download
CNY | Chinese Yuan 0,10 ÷ 1 4,5 mm - Blue Deck Download
COP | Colombian Peso 50 ÷ 1000 4,5 mm - Blue Deck Download
CZK | Rep. Ceka Koruna 1,00 ÷ 50,00 4,5 mm - Blue Deck Download
EUR | Euro 0,01 ÷ 2,00 3,5 mm - Black Deck Download
EUR | Euro 0,05 ÷ 2,00 3,5 mm - Black Deck Download
EUR | Euro 0,05 ÷ 2,00 4,5 mm - Blue Deck Download
EUR | Euro 0,10 ÷ 2,00 4,5 mm - Blue Deck Download
EUR | Euro 0,50 ÷ 2,00 4,5 mm - Blue Deck Download
GTQ | Guatemala Quetzal 0.25 ÷ 1.00 4,5 mm - Blue Deck Download
ILS | Israeli New Shekel 1 ÷ 10 4,5 mm - Blue Deck Download
INR | Indian Rupee 1,00 ÷ 10,00 4,5 mm - Blue Deck Download
JPY | Japanese Yen 10 ÷ 500 3,5 mm - Black Deck Download
JPY | Japanese Yen 10 ÷ 500 4,5 mm - Blue Deck Download
RON | Leu Romeno 0,05 ÷ 0,50 3,5 mm - Black Deck Download
RSD | Serbian Dinar 5 ÷ 20 4,5 mm - Blue Deck Download
SEK | Swedish Krona 1 ÷ 10 4,5 mm - Blue Deck Download
TWD | Taiwan 1 ÷ 50 4,5 mm - Blue Deck Download
TZS | Tanzanian Schilling 50 ÷ 200 4,5 mm - Blue Deck Download
UGX | Ugandan Shilling 100 ÷ 1000 4,5 mm - Blue Deck Download
USD | US Dollar 0,01 ÷ 1 4,5 mm - Blue Deck Download
UYU | Uruguayan peso 1 ÷ 50 4,5 mm - Blue Deck Download
VEF | Venezuelan Bolivar 0,05 ÷ 1,00 4,5 mm - Blue Deck Download
ZAR | South African Rand 0,10 ÷ 5,00 4,5 mm - Blue Deck Download
